Name: HTC Touch Pro (Raphael, Sprint/Verizon Touch Pro, AT&T Fuze)
Brand: HTC

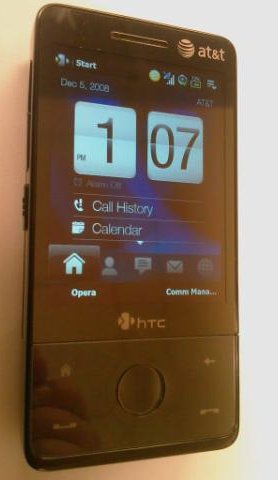

HTC Touch Pro (Raphael, Sprint/Verizon Touch Pro, AT&T Fuze), Foto — Foto: Wikimedia Commons · MikelZap at English Wikipedia · Public domain

Ein Touch Diamond mit ausziehbarer fünfzeiliger QWERTY-Tastatur und neigbarem Display, microSD statt der integrierten 4 GB, 288 MB RAM, 512 MB ROM, Akku mit 1340 mAh, TV-Out. AT&T Fuze, Sprint und Verizon Touch Pro, T-Mobile MDA Vario IV, O2 XDA Diamond Pro. 165 g.

Technische Daten

OS	Windows Mobile 6.1 Professional + TouchFLO 3D
Prozessor	Qualcomm MSM7201A, 528 MHz
RAM	288 MB
ROM	512 MB, microSD
Display	2,8" VGA 640×480
Tastatur	QWERTY, 5 Reihen
Kamera	3,2 MP AF + VGA
Konnektivität	HSDPA, Wi-Fi, Bluetooth, GPS
Akku	1340 mAh
Gewicht	165 g
Codename	Raphael

Daten aus Wikipedia (en)

Hersteller	HTC
Serie	HTC Touch family
Verfügbarkeit	2008-06 ; (Contract Free GSM) ; 2008-10-26 ; (Sprint); 2008-10-11 (Vodafone); 2008-11-11 (AT&T) ; 2008-11-24 (Verizon)
Bauform	Slide
Betriebssystem	Original: Windows Mobile 6.1 Professional; Unofficial: Android 1.6 "Donut" if XDAndroid installed and ported to Android
Prozessor	Qualcomm MSM7201A ARM 11 at 528 MHz
RAM	288 MB RAM ; 512 MB ROM
Speicherkarte	microSDHC, up to 32 GB
Display	480×640 px, 2.8 in, 285 PPI, 65536 color LCD, 3:4 aspect ratio
Hauptkamera	3.2 megapixel AF back
Frontkamera	.3 megapixel front (only on GSM Unlocked version)
Konnektivität	USB Mini-B ; Bluetooth 2.0 + EDR ; Wi-Fi (802.11b/g)
Netze	aGPS ; HTC Raphael 100: Quad band GSM 850, 900, 1800, 1900, GPRS, EDGE ; Quad band UMTS 850,900,1900, 2100, HSDPA, HSUPA ; HTC Raphael 800: Dual band CDMA 800, 1900 ; Single band EV-DO 2000 1xEV-DO Rev A.
Eingabe	QWERTY Keyboard and Touchscreen
Akku	1340mAh mAh Lithium-ion polymer battery, user accessible
Abmessungen	102 mm (h) ; 51 mm (w) ; 18 mm (d)
Gewicht	158.9 g
Vorgänger	HTC TyTN II
Nachfolger	HTC Touch Pro2
Verwandt	Sony Ericsson Xperia X1

Wikipedia (en)

The HTC Touch Pro is a smartphone from the Touch series of Windows Mobile Pocket PCs designed and marketed by HTC Corporation of Taiwan. Released in 2008, it is an enhanced version of the HTC Touch Diamond with the addition of a left-side slide-out QWERTY keyboard, a microSD card slot, and a camera flash.

Source: HTC Touch Pro — Wikipedia (CC BY-SA 4.0)
